High Performance 5 Micro PP & PE Polyester Liquid Filter Bag for Water Tank Chemical Industry Liquid Filtration
Product Description
Product Description

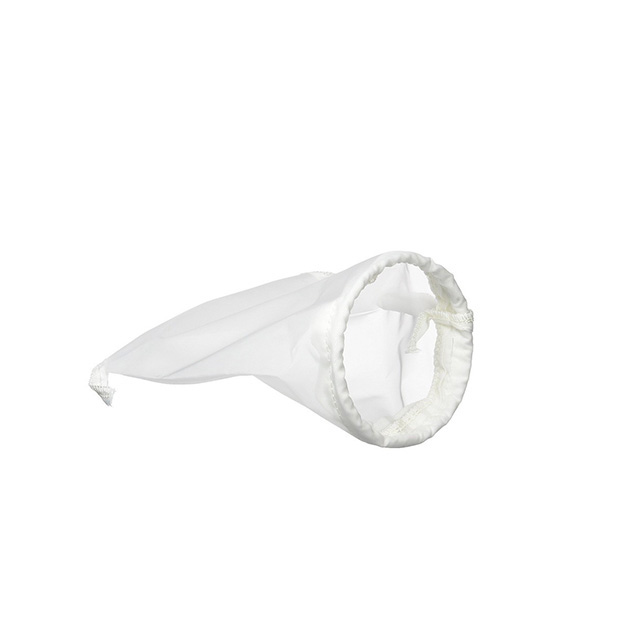

Nylon Mesh Liquid Filter Bag is sewn by high strength nylon braided net car, and it adopts unique edge wrapping technology to prevent the leak of the needle hole to the greatest extent. The impurities in the filter bigger than its own mesh are directly trapped on the surface of the material, particles with diameters smaller than the number of meshes enter the downstream through the meshes, so the nylon monofilm Filter Bag realizes the surface filtration. In addition, the smooth surface is also easy to clean, can be used repeatedly.

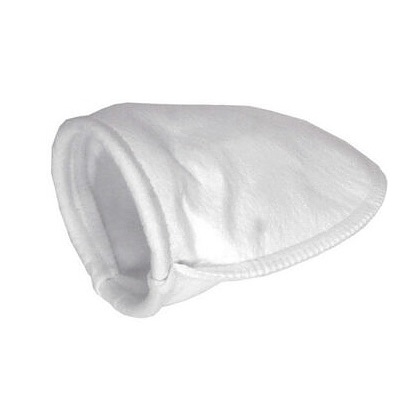

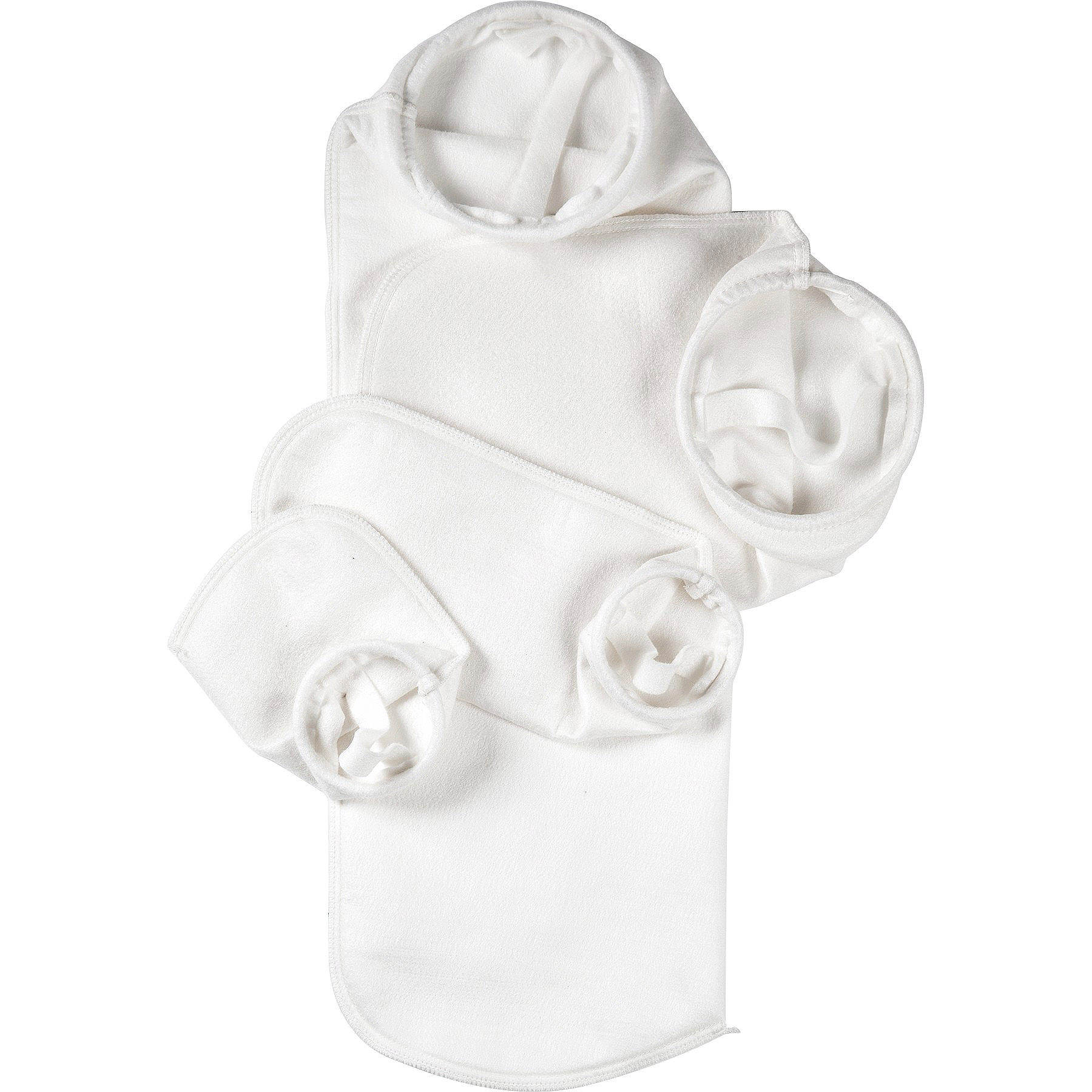

PP/PE Felt Liquid Filter Bag is designed to withstand higher solid loading, and is suitable for applications using vessel or open filtration systems. Industries that would need liquid filter bags consist of chemical, food, paper, petroleum, adhesives, paints and many others.
They are widely used in alumina, phosphate fertilizer industry, cement, smelting, chemical industry, chemical fiber and other continuous production of the environment, non-ferrous metals such as zinc oxide, cobalt oxide, alumina, potash, nickel cobalt ore, manganese ore and other mineral smelting, dye chemical industry, coal mining and other industries.
You can rest assure that the quality of the liquid filter bags is guaranteed as our production inspection equipment is complete and the processing technology is mature. All the materials we use contain no toxic elements, and they are recyclable and environment-friendly. This Needle Felt is durable, can be used for a long time. It can be provided in different specifications.
Our products are sold well both at domestic and abroad, highly praised by our customers. We can supply you with this product in a large quantity at wholesale prices. And we can give you the best after-sales service if you buy our products!
Key Benefits: * Micron ratings from 1 to 1500.
* All industry standard and custom sizes available.
* High flow/low pressure drop media.
* Surface-retention filtration.
* Wide chemical compatibility.
* Sewn construction.
* Handles standard on all bags.
* Choice of steel ring or plastic flange.
* Economical removal of non-deformable contaminants.
* Non-fiber releasing.
* Good removal effiencies.
* Temperature ratings to 350°F (some felt liquid filter bag may reach higher).
* Polyester and nylon materials reach food grade.
* Silicone-free construction.
Bag Materials:
Nylon Mesh filter bag media is woven from threads made of smaller fibers. Bags made from this material are low cost and disposable. Monofilament Mesh is woven from single-fiber threads. The openings are square and uniform. Bags made from this material have excellent strength.
PP/PE felt filter bag is using 100% synthetic fibers in polypropylene, polyester, Nomix and Taflon. The proper combination of fiber diameters, weights and thicknesses result in an economical depth filter media. To reduce fiber migration, Polypropylene bags are treated with a glazed finish, while Polyester and Nomix bags are singed.

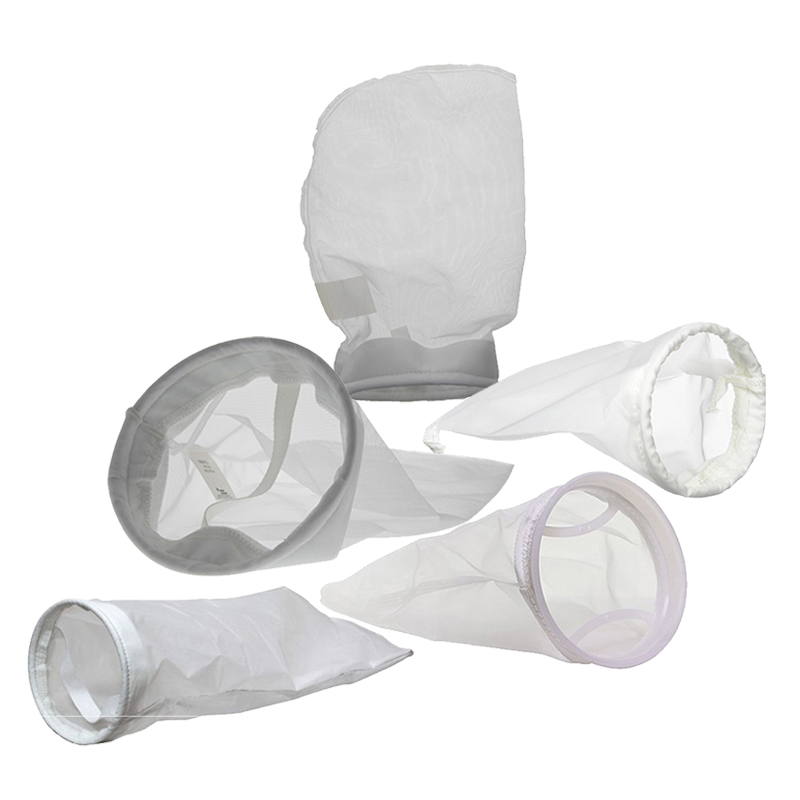

Bag Styles:

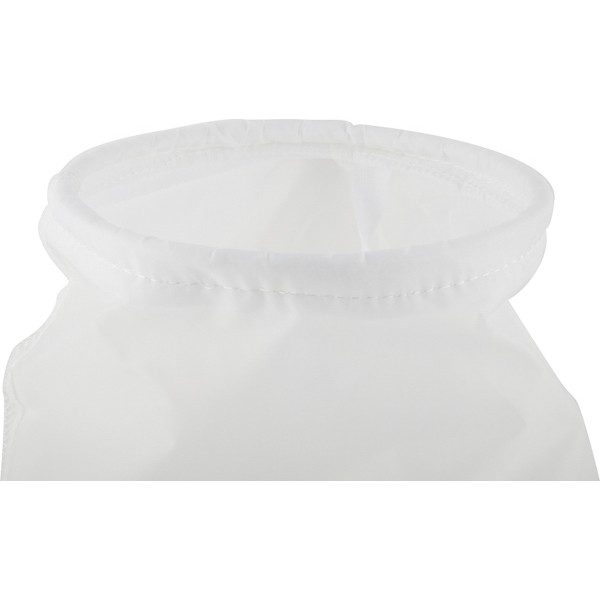

① Steel-ring bags (left) have a galvanized steel ring (stainless steel optional) sewn into the top of the bag. They are supplied with sewn seams standard.
② Plastic flange bags (right) have a specially-designed flange sewn to the top of the bag. They are supplied with sewn seams standard (welded collars available upon request). Entex products are sold well both at domestic and abroad, highly praised by our customers. We can supply you with this product in a large quantity at wholesale prices. And we will give you the best after-sales service if you buy our products! Product Paramenters
Production Process
Company Profile

Entex Filtration is committed to provide the highest quality filtration products and the most suitable solutions for different application needs from global customers since 2015. Entex Filtration offers products to meet all baghouse needs for global customers, main products contain:
1) Dust Filter Bags: PP, Polyester, Polyester Antistatic, Polyester Waterproof & Oil Repellent Antistatic, PPS, Aromatic
Polyamideimide(P84), Acrylic, Nomex, Glass Fiber, FMS, PTFE needle felt Dust Filter bags.
2) Liquid Filteration: PP/PE/Nylon filter bags, PP melt blown filter cartridges, string wound filter cartridges, membrane pleated cartridges, activated carbon filters and filter housing etc.
3) Baghouse Parts & Accessories: Cartridge Filters, Filter Cages, Filter Press Plates, Air Slide Fabric, Conveyor Parts,
Fiberglass Thread, Ptfe Sewing Thread, Venturies, etc.
Entex Filtration is trying best to take away dust from air, to promote the development of environmental protection, and to serve the companies who need Bag Filter system parts and related products. FAQ Q: Are you a trading company or a manufacturer?
A: We have our own factory.
Q: Do you support OEM made?
A: OEM is warmly welcomed, we can arrange your own color or label, print your OEM package, and make your own shape according to your drawing.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge, you only have to pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: How's the after-sale service?
A: We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment. For any other supplier order,you just ask them to deliver us for combine container,we’ll do this favor to arrange everything very well.
Q: What is your terms of payment?
A: Payment=1000USD, 30% T/T in advance ,balance before shippment.
Please feel free to contact us if you have any questions. Contact us if you need more details on Liquid Nylon Filter Bag. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Liquid Nylon Filter Bag、Liquid Nylon Filter Bag. If these products fail to match your need, please contact us and we would like to provide relevant information.




They are widely used in alumina, phosphate fertilizer industry, cement, smelting, chemical industry, chemical fiber and other continuous production of the environment, non-ferrous metals such as zinc oxide, cobalt oxide, alumina, potash, nickel cobalt ore, manganese ore and other mineral smelting, dye chemical industry, coal mining and other industries.


Our products are sold well both at domestic and abroad, highly praised by our customers. We can supply you with this product in a large quantity at wholesale prices. And we can give you the best after-sales service if you buy our products!


* All industry standard and custom sizes available.
* High flow/low pressure drop media.
* Surface-retention filtration.
* Wide chemical compatibility.
* Sewn construction.
* Handles standard on all bags.
* Choice of steel ring or plastic flange.
* Economical removal of non-deformable contaminants.
* Non-fiber releasing.
* Good removal effiencies.
* Temperature ratings to 350°F (some felt liquid filter bag may reach higher).
* Polyester and nylon materials reach food grade.
* Silicone-free construction.
Bag Materials:
Nylon Mesh filter bag media is woven from threads made of smaller fibers. Bags made from this material are low cost and disposable. Monofilament Mesh is woven from single-fiber threads. The openings are square and uniform. Bags made from this material have excellent strength.
PP/PE felt filter bag is using 100% synthetic fibers in polypropylene, polyester, Nomix and Taflon. The proper combination of fiber diameters, weights and thicknesses result in an economical depth filter media. To reduce fiber migration, Polypropylene bags are treated with a glazed finish, while Polyester and Nomix bags are singed.


① Steel-ring bags (left) have a galvanized steel ring (stainless steel optional) sewn into the top of the bag. They are supplied with sewn seams standard.
② Plastic flange bags (right) have a specially-designed flange sewn to the top of the bag. They are supplied with sewn seams standard (welded collars available upon request). Entex products are sold well both at domestic and abroad, highly praised by our customers. We can supply you with this product in a large quantity at wholesale prices. And we will give you the best after-sales service if you buy our products! Product Paramenters
Item | Max.Flow(m³/h) | Filter Area(m²) | Volume(L) | Diameter(inch) | length(inch) | mm |
#1 | 20 | 0.25 | 8 | 7″ | 17″ | 180X450 |
#2 | 40 | 0.5 | 17 | 7″ | 32″ | 180X810 |
#3 | 6 | 0.09 | 1.3 | 4″ | 9″ | 105x230 |
#4 | 12 | 0.16 | 2.5 | 4″ | 15″ | 105X380 |
#5 | 18 | 0.22 | 6″ | 20" | 155x500 | |

Material | NMO, PE, PP |
Bag top ring | Plastic ring , Stainless steel ring |
Filtration micron | 0.22, 1, 5, 10, 25, 50, 100, 200 ,300µm |
Airtight method | Hot Melt, reverse sewing |
Custom Made | Special requirement of diameter and collar extension can be customized |
As part of any filter system the correctly sized and best quality consumable filter media are key to an efficient, smooth running process. | |
We can accommodate your requirements when it comes to the supply of all types of filter media; filter bags and filter cartridges, for wet and dry applications. | |
Filter bags and cartridges come in a variety of media types from needle felts to mesh and with micron ratings to suit. In addition to the more common filter media, we can also provide spray booth filter media, of the concertina-type or synthetic foam, and powder booth filter cartridges. |




1) Dust Filter Bags: PP, Polyester, Polyester Antistatic, Polyester Waterproof & Oil Repellent Antistatic, PPS, Aromatic
Polyamideimide(P84), Acrylic, Nomex, Glass Fiber, FMS, PTFE needle felt Dust Filter bags.
2) Liquid Filteration: PP/PE/Nylon filter bags, PP melt blown filter cartridges, string wound filter cartridges, membrane pleated cartridges, activated carbon filters and filter housing etc.
3) Baghouse Parts & Accessories: Cartridge Filters, Filter Cages, Filter Press Plates, Air Slide Fabric, Conveyor Parts,
Fiberglass Thread, Ptfe Sewing Thread, Venturies, etc.
Entex Filtration is trying best to take away dust from air, to promote the development of environmental protection, and to serve the companies who need Bag Filter system parts and related products. FAQ Q: Are you a trading company or a manufacturer?
A: We have our own factory.
Q: Do you support OEM made?
A: OEM is warmly welcomed, we can arrange your own color or label, print your OEM package, and make your own shape according to your drawing.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge, you only have to pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: How's the after-sale service?
A: We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment. For any other supplier order,you just ask them to deliver us for combine container,we’ll do this favor to arrange everything very well.
Q: What is your terms of payment?
A: Payment=1000USD, 30% T/T in advance ,balance before shippment.
Please feel free to contact us if you have any questions. Contact us if you need more details on Liquid Nylon Filter Bag. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Liquid Nylon Filter Bag、Liquid Nylon Filter Bag. If these products fail to match your need, please contact us and we would like to provide relevant information.
